DEXTER Personal Supercomputer offers the joint power of four workstation class computers, unique features and bespoke configurations
Main Features
- Four computers (nodes) in a single personal supercomputer casing, each having a standard ATX-size motherboard
- CPU cores from 16 to 40 (for base configurations) altogether. Base configurations use overclockable Intel Core i7 and Core i9 CPUs, or Intel Xeon CPUs, one CPU on each motherboard
- 12 hard drive positions: 2 x 3.5” or 2.5” positions and 10 x 2.5” only positions. Any node can utilize any of the 12 positions
- Each node has its own power supply built into the casing
- 8-port Gigabit LAN switch built into the casing. Full access to all 8 ports on casing back panel. Its power is supplied by the Master node power supply unit or by its original 12V adapter
Other General Features
- Patented DEXTER personal supercomputer casing engineered and optimized to have minimal floor footprint and to provide sufficient cooling of components
- Casing outer dimensions: 350mm x 495.5mm/546.5mm x 650mm (W x H without/with casters x D)
- CPU cooler with Ø92 – Ø120mm cooling fan (depending on CPU type), max. 160W cooling power for each CPU
- Full access to Master node I/O ports on casing back panel
- Each node can take a full size (260mm long x 132mm wide) PCI express x16 graphics card
Applications

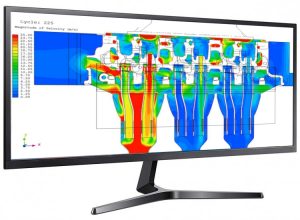

CAE, Simulation
Video Editing, CGI, Rendering
Software Development
DEXTER 16 – Start Your Cluster Computing Experience
4 x 4 Cores: 3.6 GHz INTEL Xeon Processor for each computer
Master Motherboard Format: ATX
3 x Computing Node Motherboard Format: ATX
16 GB Memory for each node, 64 GB Memory altogether
1 TB Storage for each node
Master Graphics: nVidia Quadro P400 2GB
Computing Node Graphics: nVidia Quadro P400 2GB
Master Power Supply: 550W
3 x Computing Node Power Supply: 550W See Details
DEXTER 24 – Ready for Your Tough Computing Challenges
4 x 6 Cores: 3.7 GHz INTEL Xeon or 3.7 GHz Core i7 Processor for each computer
Master Motherboard Format: ATX
3 x Computing Node Motherboard Format: ATX
32 GB Memory for each node, 128 GB Memory altogether
1 TB Storage for each node
Master Graphics: nVidia Quadro P400 2GB
Computing Node Graphics: nVidia Quadro P400 2GB or Integrated
Master Power Supply: 650W
3 x Computing Node Power Supply: 650W
4 x 6 Cores: 3.7 GHz INTEL Xeon or 3.7 GHz Core i7 Processor for each computer
Master Motherboard Format: ATX
3 x Computing Node Motherboard Format: ATX
32 GB Memory for each node, 128 GB Memory altogether
1 TB Storage for each node
Master Graphics: nVidia Quadro P400 2GB
Computing Node Graphics: nVidia Quadro P400 2GB or Integrated
Master Power Supply: 650W
3 x Computing Node Power Supply: 650W
DEXTER 32 – Serious Hardware for Serious Computing Jobs
4 x 8 Cores: 3.7 GHz INTEL Xeon or 3.6 GHz Core i9 Processor for each computer
Master Motherboard Format: ATX
3 x Computing Node Motherboard Format: ATX
32 GB Memory for each node, 128 GB Memory altogether
2 TB Storage for each node
Master Graphics: nVidia Quadro P1000 4GB
Computing Node Graphics: nVidia Quadro P400 2GB
Master Power Supply: 650W
3 x Computing Node Power Supply: 550W
4 x 8 Cores: 3.7 GHz INTEL Xeon or 3.6 GHz Core i9 Processor for each computer
Master Motherboard Format: ATX
3 x Computing Node Motherboard Format: ATX
32 GB Memory for each node, 128 GB Memory altogether
2 TB Storage for each node
Master Graphics: nVidia Quadro P1000 4GB
Computing Node Graphics: nVidia Quadro P400 2GB
Master Power Supply: 650W
3 x Computing Node Power Supply: 550W
DEXTER 40 – The Most Powerful Among Standard Configurations
4 x 10 Cores: 3.3 GHz INTEL Xeon or 3.3 GHz Core i9 Processor for each computer
Master Motherboard Format: ATX
3 x Computing Node Motherboard Format: ATX
64 GB Memory for each node, 256 GB Memory altogether
2 TB Storage for each node
Master Graphics: nVidia Quadro P1000 4GB
Computing Node Graphics: nVidia Quadro P400 2GB
Master Power Supply: 650W
3 x Computing Node Power Supply: 650W
4 x 10 Cores: 3.3 GHz INTEL Xeon or 3.3 GHz Core i9 Processor for each computer
Master Motherboard Format: ATX
3 x Computing Node Motherboard Format: ATX
64 GB Memory for each node, 256 GB Memory altogether
2 TB Storage for each node
Master Graphics: nVidia Quadro P1000 4GB
Computing Node Graphics: nVidia Quadro P400 2GB
Master Power Supply: 650W
3 x Computing Node Power Supply: 650W
Call +44 (01444) 232 099 or email to office@personalsupercomputer.co.uk for a quote
All DEXTER Personal Supercomputers are upgradeable. Need more memory/graphics/storage? Send an email to: office@personalsupercomputer.co.uk
